Program #: 1684
Module: Utilities
Overview
Use Access Log Searching (program #1684) to see installations access by the individual users. The log will display the date, time, installation number, and action taken by the user.
Navigating to Access Log Searching
Use the following steps to access the Access Log Search program:
From the main SBN toolbar, select Menu.
From the drop-down menu, select Go To.
In the Go To Program dialog box, type in "1684" and press ENTER.
w The Access Log Searching window opens.
The Access Log Search Window

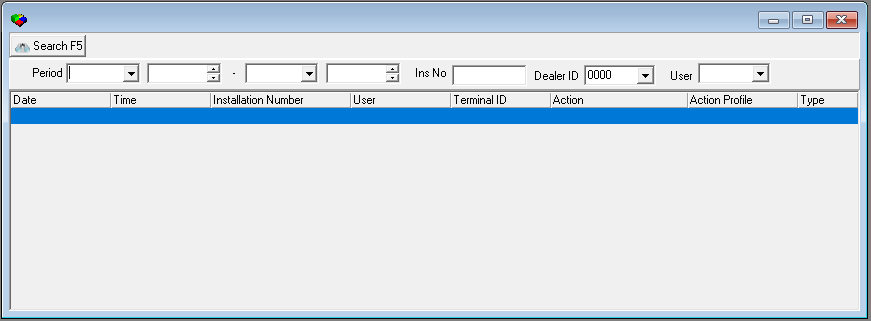

The following graphic shows as the Access Log Search program opens.

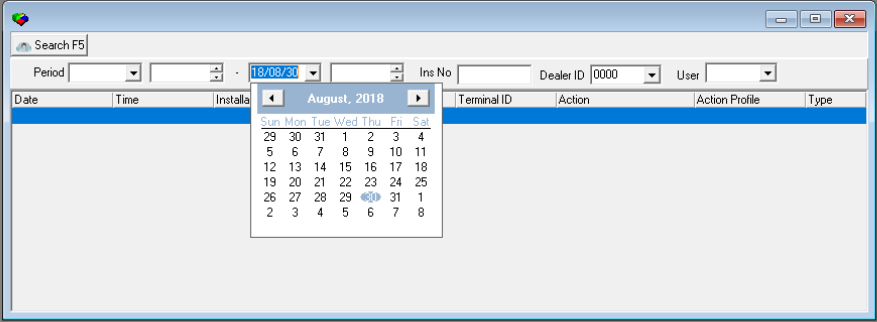

The drop down boxes allow you to search by date and time periods, or by installation number.

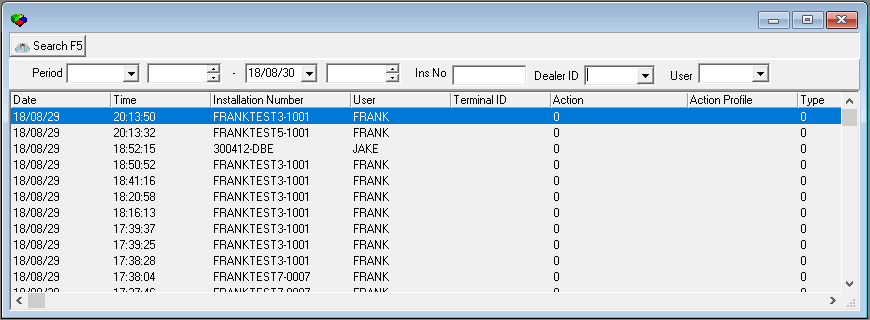

SBN will display your search results and the user Action field.
Field and Column Descriptions
The following table describes the fields and columns in Users.
Field/Column |
Description |
| Search Parameters | |
Period |
Associated with four drop down boxes that allow you to enter date and time ranges |
Installation Number |
SBN generated Installation number. |
Dealer ID |
Dealer ID number from the installation. |
User |
Displays the user ID of the currently selected user. |
| Results (Below Pane) | |
Date |
Date returned based off search period. |
Time |
Time returned based off search period. |
Installation Number |
Installation Number associated with installation number. |
Terminal ID |
Identifies the terminal to which you want to attach skills. |
Action |
Displays when CODEWORD is used. |
Action Profile |
Profiles that are used to restrict or allow user to access specific programs and functions. |
Type |
Type of action plan contact. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions and functionality.
Button |
Name |
Shortcut Key |
Description |
|
Search |
f5 |
Once search criteria is entered, click the Search button to display the results |
Modifications and Updates to Users
The following table lists modifications and updates to the Users document.
Mod Number |
Date |
Description |
07.89.25975, 08.89.11493, 08.89.11492 |
08/30/18 |
Access Search Program created. |
