External Batches

Program #: 1625

Module: Accounting

Overview

Use External Batches (program #1625) to define ranges of external batch numbers created for invoice and payment batches. Used for variable part of mask, example: 123___AB will result in a batch number of 123001AB and 123002AB etc.

To access this program, choose External Batches (program #1625) from the main menu of SBN.

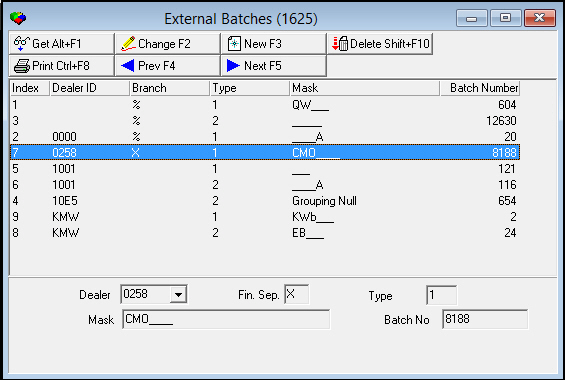

The External Batches Screen

This screen displays previously defined ranges of external batch numbers.

Field/Column Descriptions

The following table describes the fields and columns used in the External Batches screen.

Field	Description
Index	Sequential number of individual line item.
Dealer ID	ID of the dealer associated with batch numbers. Note: If you leave this field blank, the batch numbers are used for all Dealers.
Branch	Branch associated with batch numbers. This field accepts wildcards.
Type	1 = Invoice batch numbers - appears in program #1557 2 = Payment batch numbers - appears in programs #1577, #1579, #1585, and #1507.
Mask	Defines the format of the batch number.
Batch Number	When first defining batch numbers, enter the starting number. After numbers are generated this field displays the last used number.

Button Functions

The following table displays the buttons, describes the shortcut keys, actions, and functionality.

Button	Name	Shortcut Key	Action	Description
	Get Record	alt+f1	1625/ 1	View details of selected record.
	Change Record	f2	1625/ 2	Change details of selected record.
	New Record	f3	1625/ 3	Create a new record.
	Delete Record	shift+f10	1625/ 4	Delete selected record.
	Print selected records	ctrl+f8	1625/ 6	Print selected records.
	Previous Record	f4		Go to previous record.
	Next Record	f5		Go to next record.
	Exit without saving	esc		Exit without saving changes to selected record.
	Save Existing Record	enter		Save changes to selected record.
