Codeword Types
Program #: 1575
Module: System Administration
Overview
Use Codeword Types (program #1575) to define and maintain profiles of codeword types in SBN. The menu of defined codeword types appears in Data Entry (program #559).
To access this program, select Codeword Types (program #1575) from the main menu of SBN.
The Codeword Types Window
The following graphic shows Codeword Types as the program opens. The upper pane displays all previously defined codeword types.
Field/Column Descriptions
The following table describes the fields and columns used in Codeword Types.
|
Field/Column |
Description |
|
Type |
Abbreviation that identifies the codeword type. |
|
Description |
Text description of the codeword type. |
Using Common Functions
See the reference document Common Functions in SBN for more information.
Zooming into the Sublevel
Codeword Types contains a sublevel with a Translations tab - in which you attach translations to codeword types. Those codeword types then appear in the user’s language.
Note: Actions 1575/10-14 control access to the Translations tab and its functions.
The Translations Tab

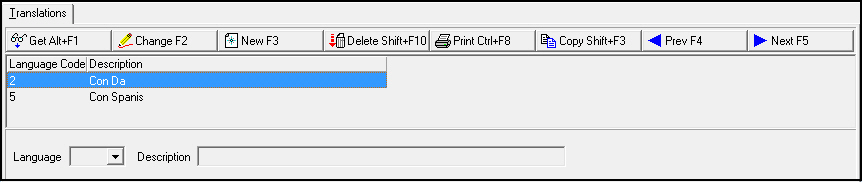

The following graphic shows the Translations tab as it opens. The tab displays translations previously attached to the selected codeword type.
Field/Column Descriptions
The following table describes the fields and columns used in the Translations Tab.
|
Field/Column |
Description |
|
Language Code |
Code that identifies the language of the associated translation. O Contact IBS before using codes 11-17. |
|
Description |
Text description, in the associated language, of the selected codeword type. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
|
Button |
Name |
Shortcut Key |
Action |
Description |
|
|
Get |
ALT+F1 |
1575/ 1 |
Get record. |
|
|
Change |
F2 |
1575/ 2 |
Change selected record. |
|
|
New |
F3 |
1575/ 3 |
Create new record. |
|
|
Delete |
SHIFT+F10 |
1575/ 4 |
Delete selected record. |
|
|
Undelete |
ALT+F10 |
1575/ 5 |
Restore deleted record. |
|
|
|
CTRL+F8 |
1575/ 6 |
Print selected records. |
|
|
Copy |
SHIFT+F3 |
1575/ 3 |
Copies the selected codeword type. |
|
|
Previous |
F4 |
1575/ 1 |
Select last record. |
|
|
Next |
F5 |
1575/ 1 |
Select next record. |
|
|
Zoom |
F10 |
1575/10 |
Zoom in/out of sublevel. |
|
|
Tear |
F7 |
1575/10 |
Open the Translations tab in a full-sized separate window. |
Codeword Length
Codewords accept up to 60 characters. Earlier releases limited a codeword to 20 characters; as of Release 94 the field stores up to 60, so longer codewords and identifiers are retained in full. The related contact-person code was expanded to the same 60-character length.
Modifications and Updates to Codeword Types
The following table lists modifications and updates to the Codeword Types table.
|
Mod Number |
Date |
Description |
|
n/a |
8/14/14 |
Images updated. |
