Work Order Difficulty Levels

Work Order Difficulty Levels

Work Order Difficulty Levels


Work Order Difficulty Levels

Program #:   1599

Module:    System Administration

Overview

Use Work Order Difficulty Levels (program #1599) to define the menu of the Difficulty Levels in Work Orders. SBN uses the selected difficulty level to determine the amount to charge for labor on an installation, based on the difficulty of the installation. For more details on the menu of Difficulty Levels see Work Orders. You may assign an unlimited number of difficulty levels to each Work Order Type but you must define them individually.

To access this program, select Work Order Difficulty Levels (program #1599) from the main menu of SBN.

The Work Order Difficulty Levels Window

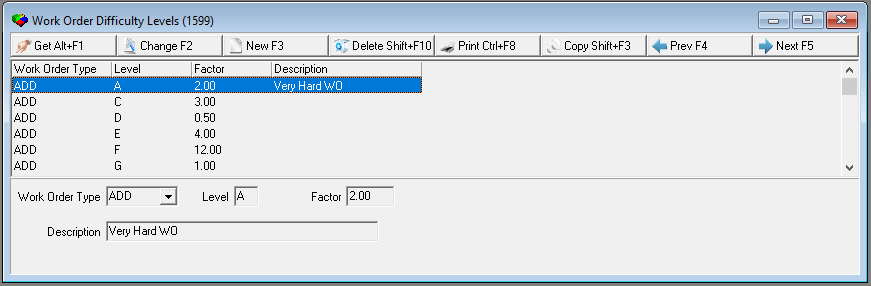

The following graphic shows Work Order Difficulty Levels as the program opens. The upper pane displays previously defined difficulty levels.

Field/Column Descriptions

The following table describes the fields and columns used in Work Order Difficulty Levels.

Field/Column

Description

Work Order Type

Work order type on which this difficulty level is based.

Level

Difficulty level for the installation.

Factor

Factor based on difficulty level for the installation.

O    (Original labor amount) x (Factor) = Amount charged for labor.

Description

A description associated with the Work Order Type.

Using Common Functions

See the reference document Common Functions in SBN for more information.

Button Functions

The following table displays the buttons, describes the shortcut keys, actions, and functionality.

Button

Name

Shortcut Key

Action

Description

Get

ALT+F1

1599/ 1

Get record.

Change

F2

1599/ 2

Change selected record.

New

F3

1599/ 3

Create new record.

Delete

SHIFT+F10

1599/ 4

Delete selected record.

Undelete

ALT+F10

1599/ 5

Restore deleted record.

Print

CTRL+F8

1599/ 6

Print selected records.

Copy

SHIFT+F3

1599/ 999

Copy selected field.

Previous

F4

1599/ 999

Select last record.

Next

F5

1599/ 999

Select next record.

Modifications and Updates to Work Order Difficulty Levels

The following table lists modifications and updates to the Work Order Difficulty Levels document.

Mod Number

Date

Description

n/a

08/26/14

Images updated.

08.88.11251, 07.88.25655, 08.88.11250, 07.88.25654

02/08/18

Images updated and new Description field and column added.

F1 Help

Delphi Forms wodifflevelsform
Program Numbers 1599
