Module: Account Management
Overview
Use the Technician Log report to evaluate the performance of both technicians and service branches. This report uses data from the Service Misc. Log. You may run either a detailed or a summary version of the report. This report sorts results by technician within service branches.
To access this report, select Technician Log (program #2101) from the main menu of SBN.

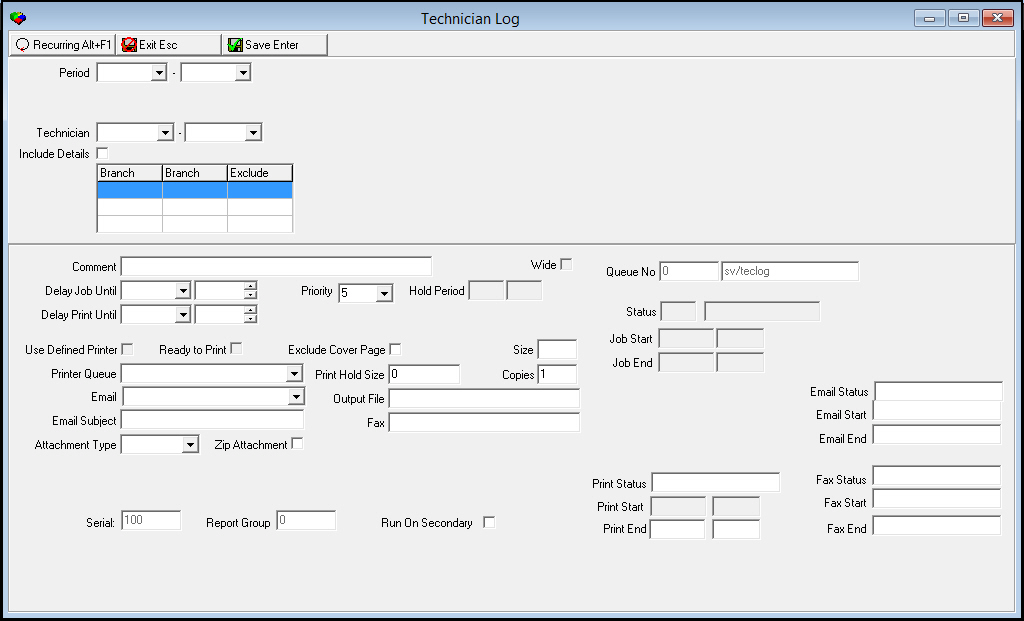

The Technician Log Report
This window contains two panes: in the upper pane you define the content of the report; in the lower pane you define the job output - how, when, and where you want to print the report.
Note: See Report Parameters Pane for information on the fields in the lower pane, which are the same in every report.
Field Descriptions
The following table describes the fields used in the upper pane of the Technician Log report.
Field Label |
Description |
Period |
|
Date
- From |
You may select a range of dates to limit the report to service requests that have an on-site record within the range. Select the beginning date of the range. |
Date
- To |
You may select a range of dates to limit the report to service requests that have an on-site record within the range. Select the ending date of the range. |
Technician Range |
|
Technician - From (No label) |
You may type a range of technician IDs to limit the report to service requests associated with technician IDs within the range. Type the beginning technician ID of the range. |
Technician
- To |
You may type a range of technician IDs to limit the report to service requests associated with technician IDs within the range. Type the ending technician ID of the range. |
Include details |
Enter a check mark in this box to generate a detailed version of this report. |
Branch Ranges |
|
Branch |
You may select up to three ranges of branches to limit the report to branches within the ranges. Select the beginning branch number of a range. (These menus originate from program #1530.) |
Branch |
You may select up to three ranges of branches to limit the report to branches within the ranges. Select the ending branch number of a range. (These menus originate from program #1530.) |
Exclude |
You may exclude ranges of branches from the report by selecting the ranges and then entering a check mark in the corresponding Exclude box. |
Running and Viewing a Report
For information on running and viewing a report, see Running and Viewing a Report in the reference document Common Functions in SBN.
Report Example 1
The following graphic shows an example of the detailed version of the output of the Technician Log report.
Column Descriptions 1
The following table describes the columns used in the detailed version of the output of the Technician Log report.
Column |
Description |
Technician |
Displays the technician ID and name. |
Branch |
Branch associated with the selected technician. |
CID # |
CID - from the Service Misc. Log. |
Request No |
Service request number - from the Service Misc. Log. |
Name |
Last name for the installation. |
Req Date |
Date on which the service request was created. |
Req Time |
Time at which the service request was created. |
Reso |
Resolution code from the first line of the service request, if available. |
Desc |
Text description of the resolution code. |
Tran |
Total transit time, in minutes, for the selected service request. |
Work |
Total work time, in minutes, for the selected service request. |
Date |
Date on which technician performed service. |
Tran |
Total transit time, in minutes, for the selected service request. |
Avg |
Average transit time for the date. |
Work |
Total work time, in minutes, for the selected service request. |
Avg |
Average work time for the date. |
Call |
Number of service calls for the date. O If technician leaves the installation and then returns, it counts as two service calls. |
Totals |
|
Tran |
Total transit time, in minutes, for all service visits by the selected technician during the specified period. |
Avg |
Average transit time for all service visits by the selected technician during the specified period. |
Work |
Total work time, in minutes, for all service visits by the selected technician during the specified period. |
Avg |
Average work time for all service visits by the selected technician during the specified period. |
Call |
Total number of service calls by the selected technician during the specified period. |
Report Example 2

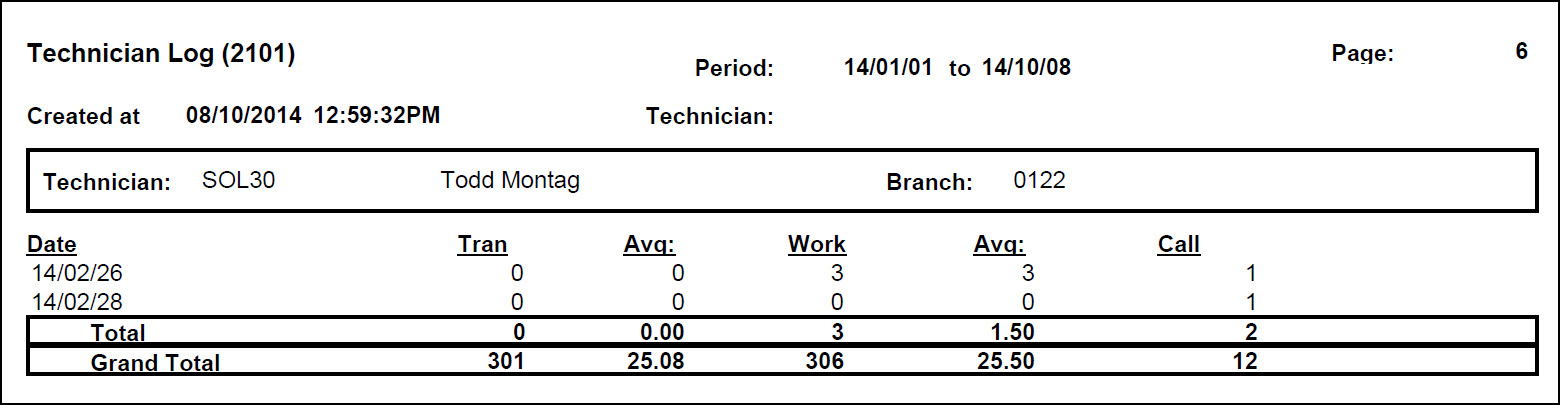

The following graphic shows an example of the summary version of the output of the Technician Log report.
Column Descriptions 2
The following table describes the columns used in the summary version of the output of the Technician Log report.
Column |
Description |
Technician |
Displays the technician ID and name. |
Branch |
Branch associated with the selected technician. |
Date |
Date on which technician performed service. |
Tran |
Total transit time, in minutes, for the selected service request. |
Avg |
Average transit time for the date. |
Work |
Total work time, in minutes, for the selected service request. |
Avg |
Average work time for the date. |
Call |
Number of service calls for the date. O If technician leaves the installation and then returns, it counts as two service calls. |
Totals |
|
Tran |
Total transit time, in minutes, for all service visits by the selected technician during the specified period. |
Avg |
Average transit time for all service visits by the selected technician during the specified period. |
Work |
Total work time, in minutes, for all service visits by the selected technician during the specified period. |
Avg |
Average work time for all service visits by the selected technician during the specified period. |
Call |
Total number of service calls by the selected technician during the specified period. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
Button |
Name |
Shortcut Key |
Action |
Description |
|
Recurring |
Alt+F1 |
2101 |
Open fields for recurring/template reports. |
|
Exit |
Esc |
2101 |
Exit without saving. |
|
Save |
Enter |
2101 |
Save existing record. |
Modifications and Updates to Technician Log
The following table lists modifications and updates to the Technician Log document.
Mod Number |
Date |
Description |
n/a |
7/29/14 |
Images updated. |
