Action Plan Data Control
Action Plan Data Control
Action Plan Data Control Report
Module: Account Management
Overview
Use Action Plan Data Control to create a report of action plan data for every installation that matches the report parameters.
To access this report, select Action Plan Data Control (report #2166) from the main menu of SBN.

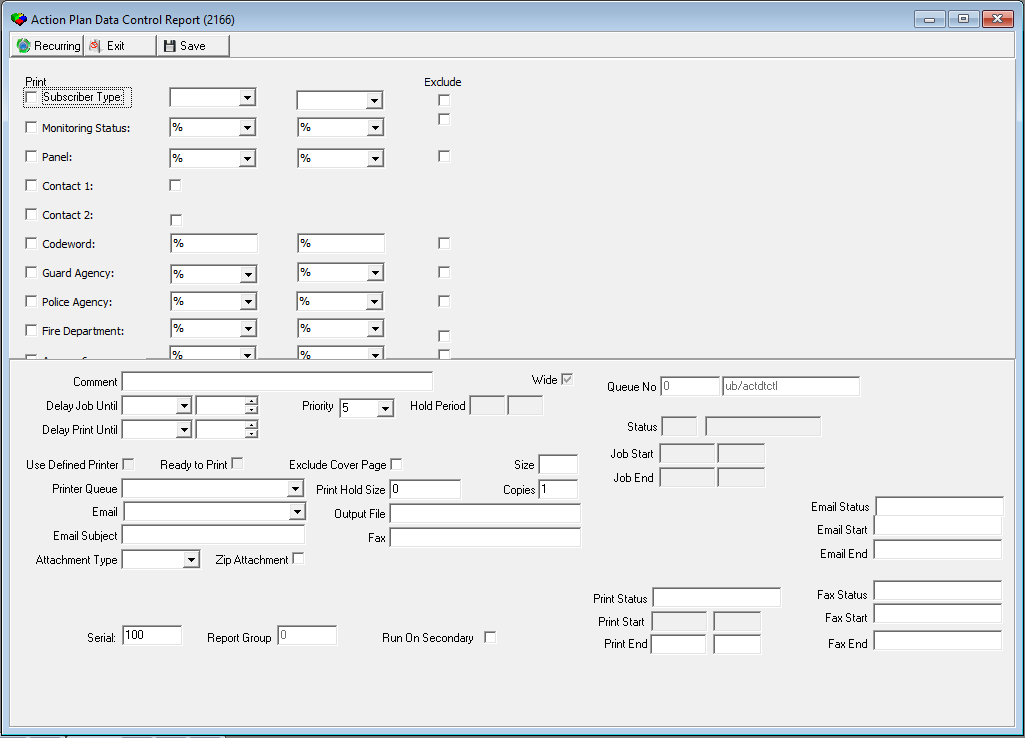

The Action Plan Data Control Window
This window contains two panes: use the upper pane to define the content of the report; use the lower pane to define the job output - how, when, and where you want to print the report.
Note: See Report Parameters Pane for information on the fields in the lower pane, which are the same in every report.
Field Descriptions
The following table describes the fields used in the upper pane of this report.
Note: You can use wildcard characters in selected fields. For more information about using wildcards, see Searches.
Field |
Wildcards |
Description |
Subscriber Type |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
No |
You may select a range of subscriber types to limit the report to subscriber types within that range. (This menu originates from program #1534.) |
Exclude |
No |
You may exclude a range of, or all, subscriber types by selecting range parameters and then entering a check mark in this box. |
Monitoring Status |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of monitoring statuses to limit the report to monitoring statuses within that range, or use the % wildcards to include all monitoring statuses. (This menu originates from program #1540.) |
Exclude |
No |
You may exclude a range of, or all, monitoring statuses by selecting range parameters and then entering a check mark in this box. |
Panel |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of panel types to limit the report to panel types within that range, or use the % wildcards to include all panel types. (This menu originates from program #1742.) |
Exclude |
No |
You may exclude a range of, or all, panel types by selecting range parameters and then entering a check mark in this box. |
Contact 1 |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Flag |
No |
Enter a check mark in this box to limit the report to action plans that include a Contact 1. |
Exclude |
No |
You may exclude action plans that include a Contact 1 from the report by entering a check mark in the Flag box and then entering a check mark in this box. |
Contact 2 |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Flag |
No |
Enter a check mark in this box to limit the report to action plans that include a Contact 2. |
Exclude |
No |
You may exclude action plans that include a Contact 2 from the report by entering a check mark in the Flag box and then entering a check mark in this box. |
Codewords |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of codewords to limit the report to codewords within that range, or use the % wildcards to include all codewords. |
Exclude |
No |
You may exclude a range of, or all, codewords by selecting range parameters and then entering a check mark in this box. |
Guard Agency |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of guard agencies to limit the report to guard agencies within that range, or use the % wildcards to include all guard agencies. (This menu originates from program #1717.) |
Exclude |
No |
You may exclude a range of, or all, service regions by selecting range parameters and then entering a check mark in this box. |
Police Agency |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of police agencies to limit the report to police agencies within that range, or use the % wildcards to include all police agencies. (This menu originates from program #1546.) |
Exclude |
No |
You may exclude a range of, or all, police agencies by selecting range parameters and then entering a check mark in this box. |
Fire Department |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of fire departments to limit the report to fire departments within that range, or use the % wildcards to include all fire departments. (This menu originates from program #1547.) |
Exclude |
No |
You may exclude a range of, or all, installer IDs by selecting range parameters and then entering a check mark in this box. |
Agency 6 |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of Agency 6 agencies to limit the report to Agency 6 agencies within that range, or use the % wildcards to include all Agency 6 agencies. (This menu originates from program #1611.) |
Exclude |
No |
You may exclude a range of, or all, Agency 6 agencies by selecting range parameters and then entering a check mark in this box. |
Agency 9 |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Range (From - To)(No label) |
Yes |
You may either select a range of Agency 9 agencies to limit the report to Agency 9 agencies within that range, or use the % wildcards to include all Agency 9 agencies. (This menu originates from program #1614.) |
Exclude |
No |
You may exclude a range of, or all, Agency 9 agencies by selecting range parameters and then entering a check mark in this box. |
Action Plan 0 |
No |
Enter a check mark in the Print box to the left to print this field heading on the report. O You may enter check marks in multiple boxes. |
Flag |
No |
You may enter a check mark in this box to limit the report to those installations that have an Action Plan 0. |
Running and Viewing a Report
For information on running and viewing a report, see Common Functions in SBN.

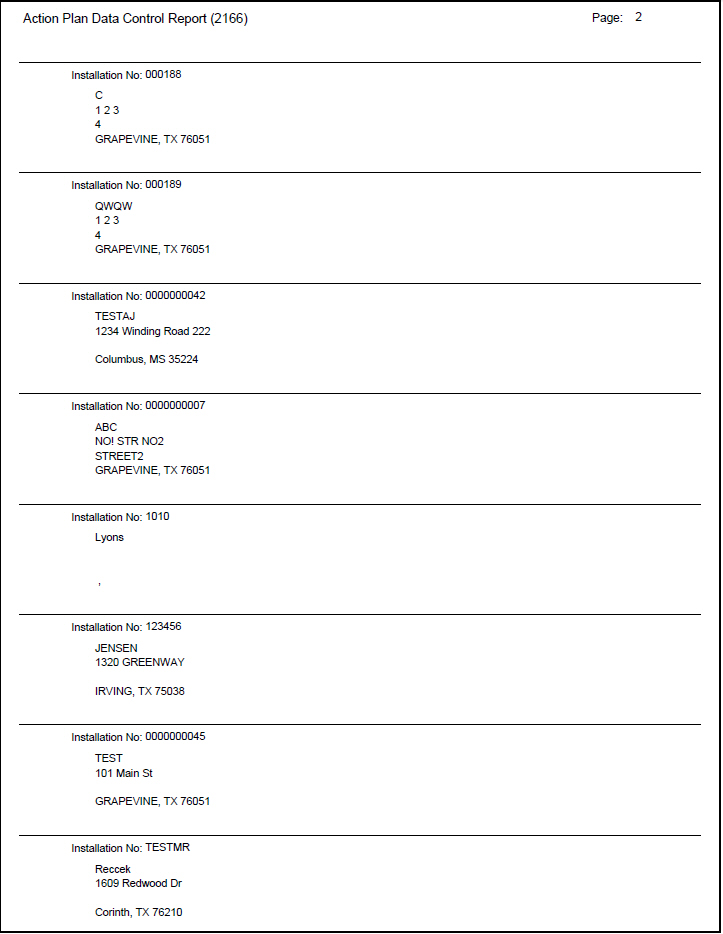

Report Example
The following graphic shows an example of the output of the Action Plan Data Control report.
Field Descriptions
The following table describes the fields used in the output of the report.
Field |
Description |
Installation No |
Displays the installation number. |
Address
Block |
Displays: l Customer name l Installation street address 1 l Installation street address 2 l Installation city, state, zip |
Subscriber Type |
If you selected this Print flag, the report displays this heading and the subscriber type associated with the selected installation, if available and not excluded. |
Monitoring Status |
If you selected this Print flag, the report displays this heading and the monitoring status of the selected installation, if available and not excluded. |
Panel |
If you selected this Print flag, the report displays this heading and the panel type associated with the selected installation, if available and not excluded. |
Contact 1 |
If you selected this Print flag, the report displays this heading. If the action plan for the selected installation contains a Contact 1, this field displays an X. |
Contact 2 |
If you selected this Print flag, the report displays this heading. If the action plan for the selected installation contains a Contact 2, this field displays an X. |
Codeword |
If you selected this Print flag, the report displays this heading and the codeword associated with the selected installation, if available and not excluded. |
Guard Agency |
If you selected this Print flag, the report displays this heading and the guard agency associated with the selected installation, if available and not excluded. O The output includes one line for each agency associated with all action plans for the selected installation. If an agency is associated on more than one action plan for the selected installation, the output will contain a line for each association. |
Police Agency |
If you selected this Print flag, the report displays this heading and the police agency associated with the selected installation, if available and not excluded. O The output includes one line for each agency associated with all action plans for the selected installation. If an agency is associated on more than one action plan for the selected installation, the output will contain a line for each association. |
Fire Department |
If you selected this Print flag, the report displays this heading and the fire department associated with the selected installation, if available and not excluded. O The output includes one line for each agency associated with all action plans for the selected installation. If an agency is associated on more than one action plan for the selected installation, the output will contain a line for each association. |
Agency 6 |
If you selected this Print flag, the report displays this heading and the Agency 6 agency associated with the selected installation, if available and not excluded. O The output includes one line for each agency associated with all action plans for the selected installation. If an agency is associated on more than one action plan for the selected installation, the output will contain a line for each association. |
Agency 9 |
If you selected this Print flag, the report displays this heading and the Agency 9 agency associated with the selected installation, if available and not excluded. O The output includes one line for each agency associated with all action plans for the selected installation. If an agency is associated on more than one action plan for the selected installation, the output will contain a line for each association. |
Action Plan 0 |
If you selected this Print flag, the report displays this heading. If the selected installation has an action plan 0, this field displays an X. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
Button |
Name |
Shortcut Key |
Action |
Description |
|
Recurring |
Alt+F1 |
2166 |
Open fields for recurring/template reports. |
|
Exit |
Esc |
2166 |
Exit without saving. |
|
Save |
Enter |
2166 |
Save existing record. |
Modifications and Updates to Action Plan Data Control
The following table lists modifications and updates to the Action Plan Data document.
Mod Number |
Date |
Description |
n/a |
07/16/14 |
Images updated. |
