Terminal Profiles
Terminal Profiles
Terminal Profiles
Program #: 1504
Module: System Administration
Overview
Use Terminal Profiles (program #1504) with Users (program #1501) to restrict users to logging in to specific terminals. After you create a terminal profile and attach specific terminals to that profile, you can attach the terminal profile to a user profile in Users (program #1501). That user can then only log into the specific terminals listed in their terminal profile.
The Terminal Profiles Window

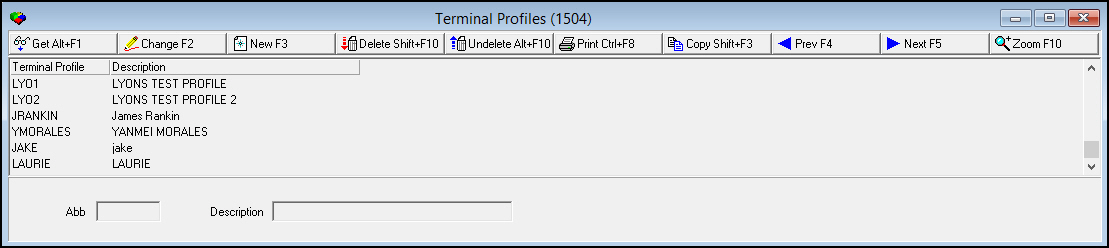

The following graphic shows Terminal Profiles as the program opens. The upper pane displays previously defined terminal profiles.
Field/Column Descriptions
The following table describes the fields and columns used in the main window of Terminal Profiles.
|
Field/Column |
Description |
|
Terminal Profile/Abbreviation |
Code that identifies the terminal profile. |
|
Description |
Text description of the terminal profile. |
Using Common Functions
See the reference document Common Functions in SBN for more information.
Zooming into the Sublevel of Terminals Profiles
Terminal Profiles contains a sublevel in which you can add or delete specific terminals from a selected profile.

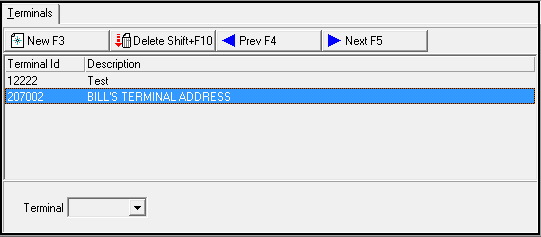

The Terminals Tab
The Terminals tab appears below the main window. The tab displays terminals previously associated with the selected terminal profile.
Field/Column Descriptions
The following table describes the fields and columns used in the Terminals tab.
|
Field/Column |
Description |
|
Terminal ID |
Identifies the specific terminal attached to the selected terminal profile. (This menu originates from program #1861.) |
|
Description |
Text description of the terminal that defaults from the Description field program #1861. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
|
Button |
Name |
Shortcut Key |
Action |
Description |
|
|
Get |
ALT+F1 |
1504/ 1 |
Get record. |
|
|
Change |
F2 |
1504/ 2 |
Change selected record. |
|
|
New |
F3 |
1504/ 3 |
Create new record. |
|
|
Delete |
SHIFT+F10 |
1504/ 4 |
Delete selected record. |
|
|
Undelete |
ALT+F10 |
1504/ 5 |
Restore deleted record. |
|
|
|
CTRL+F8 |
1504/ 6 |
Print selected records. |
|
|
Copy |
SHIFT+F3 |
1504/ 999 |
Copy selected field. |
|
|
Zoom |
F10 |
1504/ 999 |
Zoom in/out of sublevel. |
|
|
Previous |
F4 |
1504/ 999 |
Select last record. |
|
|
Next |
F5 |
1504/ 999 |
Select next record. |
Modifications and Updates to Terminal Profiles
The following table lists modifications and updates to the Terminal Profiles document.
|
Mod Number |
Date |
Description |
|
n/a |
8/26/14 |
Images updated. |
