Innovative247 Service Request Manager

Dashboard

Service Types

Program #: 1892

Module: System Administration

Overview

Use Service Types (program #1892) to define types of service. These definitions determine how option ba215 computes dispatches. Menus of Service Types appear in the Service Log tab of Data Entry (program #559) and in several other programs throughout SBN. These menus appear in the userâ€™s language.

To access this program, select Service Types (program #1892) from the main menu of SBN.

The Service Types Window

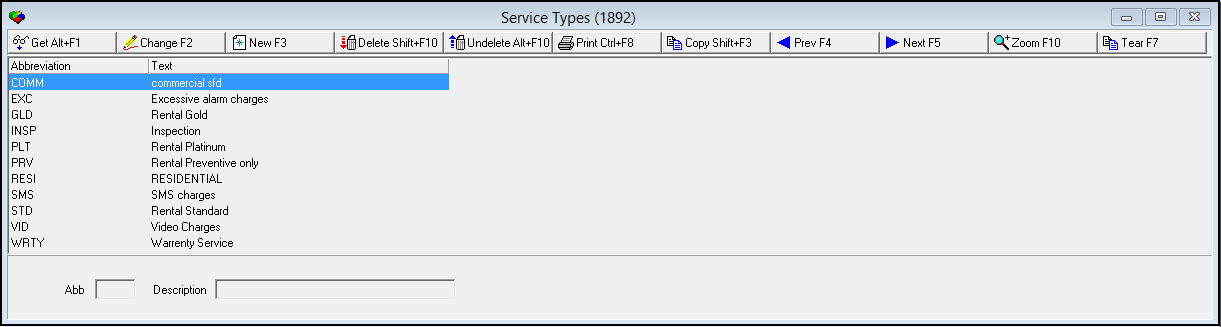

The following graphic shows Service Types as the program opens. The upper pane displays previously defined service types.

Field/Column Descriptions

The following table describes the fields columns used in the main window of Service Types.

Field/Column	Description
Abbreviation	Identifies the service type.
Description	Text description of the service type.

Using Common Functions

See the reference document Common Functions in SBN for more information.

Zooming into the Sublevel of Service Types

The sublevel of Service Types contains three tabs:

Service Types Details - in which you can link agency types that Dispatch uses for the selected service type
Translations - in which you attach translations to the selected service type. The menus of service types in other programs appear in the userâ€™s language.
Rental Product - in which you attach specific equipment that customers may rent to the selected service type

The Service Types Details Tab

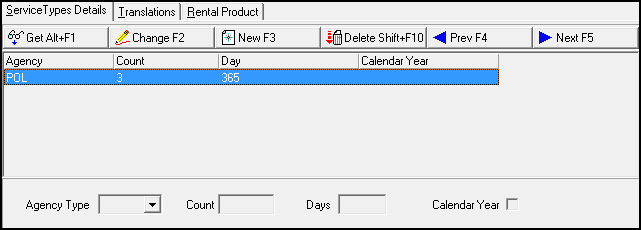

The Service Types Details tab appears in the lower pane of the window. The tab displays agencies previously linked to the selected service type.

Field/Column Descriptions

The following table describes the fields and columns used in the Service Types Details tab.

Field/Column	Description
Agency Type	Identifies the type of agency associated with the selected service type.
Count	Number of dispatches allowed within the number of days specified or within a year for the selected agency within the selected service type.
Days	Number of days back that SBN searches the Alarm Log for dispatches associated with the selected agency within the selected service type.
Calendar Year	Enter a check mark in this box to designate that the count applies to a calendar year. O If this box displays a check mark, the Calendar Year designation overrides the Days designation.

The Translations Tab

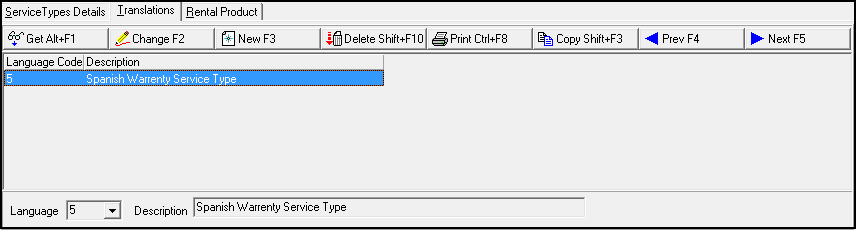

The following graphic shows the Translations tab. The tab displays previously defined translations for the selected service type.

Field/Column Descriptions

The following table describes the fields and columns used in the Translations tab.

Field/Column	Description
Language Code	Code that identifies the language of the associated translation.
Description	Translated text of the selected service type.

The Rental Product Tab

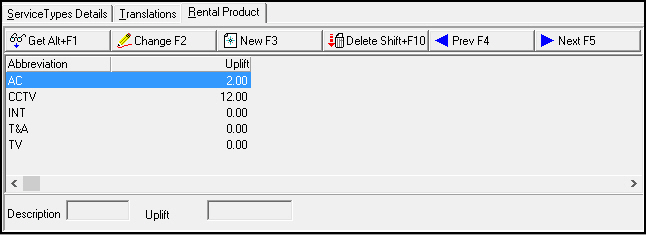

The following graphic shows the Rental Product tab. The tab displays previously defined rental products for the selected service type.

Field/Column Descriptions

The following table describes the fields and columns used in the Rental Product tab.

Field/Column	Description
Abbreviation/Description	Product that customers may rent when they subscribe to the selected service.
Uplift	Percentage above which the rental rate for the product cannot increase or decrease per cycle period.

Button Functions

The following table displays the buttons, describes the shortcut keys, actions, and functionality.

Button	Name	Shortcut Key	Action	Description
	Get	ALT+F1	1892/ 1	Get record.
	Change	F2	1892/ 2	Change selected record.
	New	F3	1892/ 3	Create new record.
	Delete	SHIFT+F10	1892/ 4	Delete selected record.
	Undelete	ALT+F10	1892/ 5	Restore deleted record.
	Print	CTRL+F8	1892/ 6	Print selected records.
	Copy	SHIFT+F3	1892/ 999	Copy selected field.
	Zoom	F10	1892/ 999	Zoom in/out of sublevel.
	Tear	F7	1892/ 999	Display Language code for translations.
	Previous	F4	1892/ 999	Select last record.
	Next	F5	1892/ 999	Select next record.
