Communication Log Report
Communication Log Report
Communication Log Report
Report #: 1904
Module: Account Generation
Overview
Use the Communication Log report (report #1904) to create a printed record of Communication Log entries. In the Communication Log report you can run entries by
-
Entry date
-
Follow-up dates
-
Keys
-
Sources
-
Media
-
Users
-
Codes
-
Installation numbers
-
Contract numbers
You can also limit the results by branch or by dealer. User’s branch restrictions apply.
To access this report, select Communication Log Report (report #1904) from the main menu of SBN.

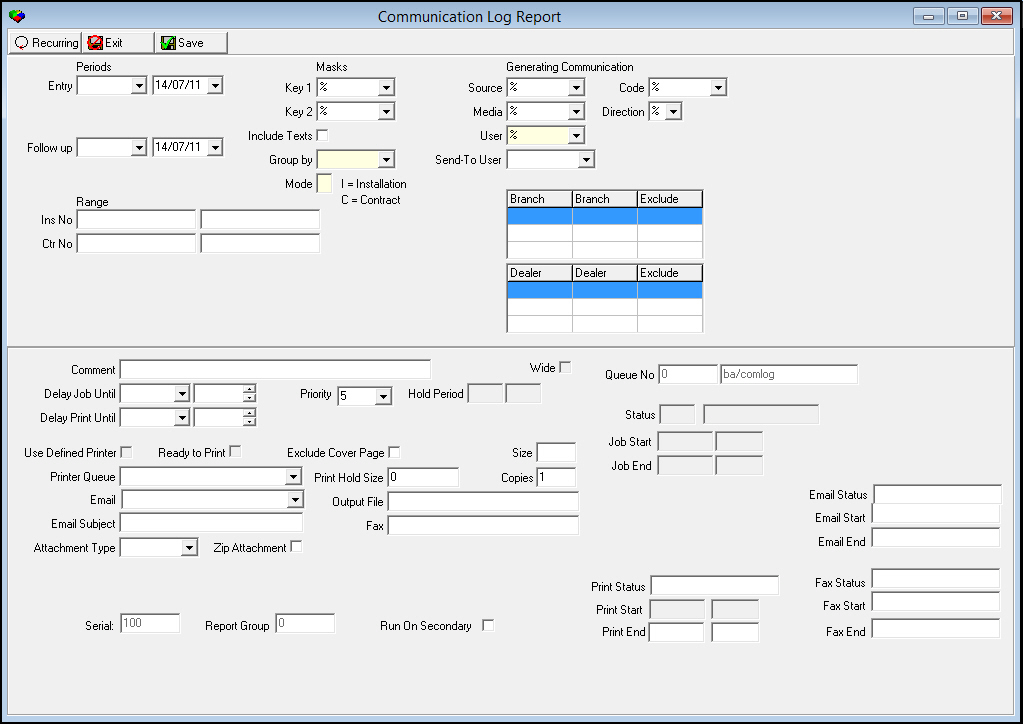

The Communication Log Report
This window contains two panes: use the upper pane to define the contents of the report; use the lower pane to define the job output - how, when, and where you want to print the report.
Note: See Report Parameters Pane for information on the fields in the lower pane, which are the same in every report.
Field Descriptions
The following table describes the fields used in the upper pane of this report.
Note: You can use wildcard characters in selected fields. For more information about using wildcards, see Searches.
|
Field |
Wildcards |
Description |
|
Periods |
||
|
Entry - From |
No |
You may select a range of dates to limit the report to Communication Log entries that occurred within the range. Select the beginning date of the range. |
|
Entry - To |
No |
You may select a range of dates to limit the report to Communication Log entries that occurred during the range. Select the ending date of the range. |
|
Follow Up - From |
No |
You may select a range of follow up dates to limit the report to Communication Log entries with follow up dates within the range. Select the beginning date of the range. |
|
Follow Up - To |
No |
You may select a range of follow up dates to limit the report to Communication Log entries with follow up dates within the range. Select the ending date of the range. |
|
Ranges |
||
|
Ins No - From |
Yes |
You may select a range of installation numbers to limit the report to installation numbers within the range. Select the beginning installation number of the range. |
|
Ins No - To |
Yes |
You may select a range of installation numbers to limit the report to installation numbers within the range. Select the ending installation number of the range. |
|
Ctr No - From |
Yes |
You may select a range of contract numbers to limit the report to contract numbers within the range. Select the beginning contract number of the range. |
|
Ctr No - To |
Yes |
You may select a range of contract numbers to limit the report to contract numbers within the range. Select the ending contract number of the range. |
|
Masks |
||
|
Key 1 |
Yes |
You may either select a Key 1 item to limit the report to records that match the Key 1 item or use the % wildcard to include all Key 1 items. (This menu originates from program #1519.) O The text of the menu entries appears in the user’s language. |
|
Key 2 |
Yes |
You may either select a Key 2 item to limit the report to records that match the Key 2 item or use the % wildcard to include all Key 2 items. (This menu originates from program #1519.) O The text of the menu entries appears in the user’s language. |
|
Include Texts |
No |
Select the box to include the text from the communication log entries. |
|
Group By |
No |
You must select a grouping parameter for the report: l Branch l None |
|
Mode |
No |
You must type a mode for the report: l I = Installation number l C = Contract number |
|
Generating Communication |
||
|
Source |
Yes |
You may either select a specific source to limit the report to records associated with that source or use the % wildcard to include all sources. (This menu originates from program #1518.) |
|
Code |
Yes |
You may either select a specific code to limit the report to records with that code or use the % wildcard to include all codes. (This menu originates from program #1517.) O The text of the menu entries appears in the user’s language. |
|
Media |
Yes |
You may either select a specific media source to limit the report to records associated with that media source or use the % wildcard to include all media sources. (This menu originates from program #1520.) |
|
Direction |
Yes |
You may either select a specific communication direction to limit the report Communication Log entries that match the direction or use the % wildcard to include all communication directions. |
|
User |
Yes |
You must either select a specific user ID to limit the report to Communication Log entries by that user or use the % wildcard to include all users. |
|
Send To User |
No |
You may select the user ID of the person to whom the communication log entry was sent to limit the report to Communication Log entries sent to that user. |
|
Branch Ranges |
||
|
Branch |
No |
You may select up to three ranges of branches to limit the report to branches within the ranges. Select the beginning branch number of a range. (These menus originate from program #1530.) |
|
Branch |
No |
You may select up to three ranges of branches to limit the report to branches within the ranges. Select the ending branch number of a range. (These menus originate from program #1530.) |
|
Exclude |
No |
You may exclude ranges of branches from the report by selecting the ranges and then entering a check mark in the corresponding Exclude box. |
|
Dealer Ranges |
||
|
Dealer |
No |
You may select up to three ranges of dealer IDs to limit the report to dealer IDs within the ranges. Select the beginning dealer ID of a range. (These menus originate from program #1537.) |
|
Dealer |
No |
You may select up to three ranges of dealer IDs to limit the report to dealer IDs within the ranges. Select the ending dealer ID of the range. (These menus originate from program #1537.) |
|
Exclude |
No |
You may exclude ranges of dealer IDs from the report by selecting the ranges and then entering a check mark in the corresponding Exclude box. |
Report Example

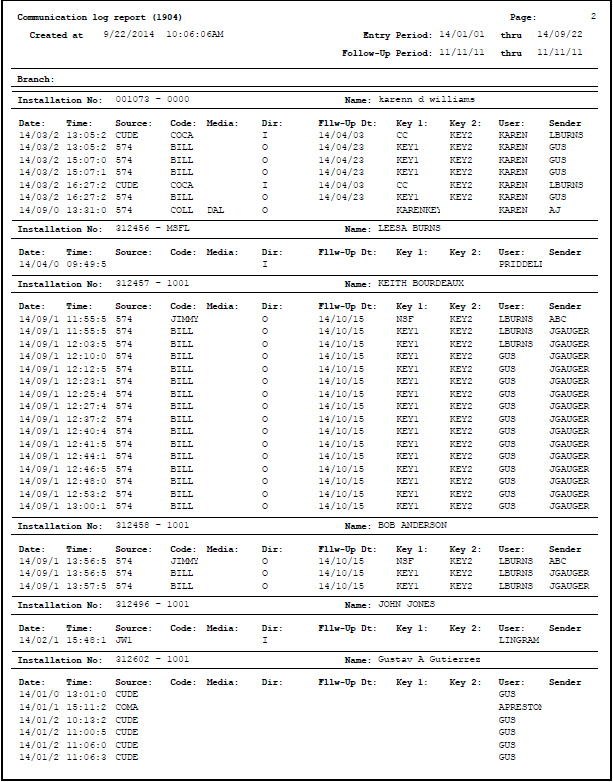

The following graphic shows an example of the output of the Communication Log report.
Note: The output of this report appears in the user’s language.
Column Descriptions
The following table describes the columns used in the output of the report.
|
Column |
Description |
|
Branch |
Branch number for the installation. |
|
Installation No |
Installation number for the customer. |
|
Dealer (No label) |
Dealer ID for the installation number. |
|
Name |
Name on the installation. |
|
Date |
Date the log entry was made. |
|
Time |
Time the log entry was made. |
|
Source |
Indicates which program the log entry was generated from. |
|
Code |
Code that indicates the type of log entry. |
|
Media |
Indicates the type of media used to contact the customer. |
|
Dir |
Indicates the direction of the communication (to or from) the customer. |
|
Fllw-Up Dt |
Follow-up date assigned to the log entry. |
|
Key 1 |
Company-defined field for tracking log entries. |
|
Key 2 |
Company-defined field for tracking log entries. |
|
User |
User ID of the person who created the entry. |
|
Sender |
User ID of the person to whom the log entry was sent. |
|
Text (No label) |
Text entries for the log. Each entry has a line index number. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
|
Button |
Name |
Shortcut Key |
Action |
Description |
|
|
Open fields for recurring/template reports |
alt+f1 |
Open fields for recurring/template reports. |
|
|
|
Exit without saving |
esc |
Exit without saving changes to selected record. |
|
|
|
Save Existing Record |
enter |
Save changes to selected record. |
Modifications and Updates to Communication Log Report
The following table lists modifications and updates to the Communication Log Report document.
|
Mod Number |
Date |
Description |
|
n/a |
07/11/14 |
Images updated. |
