Certified Accounts
Certified Accounts
Certified Accounts
Program #: 1830
Module: System Administration
Overview
Certified Accounts (program #1830) displays accounts sorted by type and/or UL Certification.
Navigating to Certified Accounts
Use the following steps to navigate to Certified Accounts:
1. From the main SBN toolbar, select Menu.
2. From the drop-down menu, select Go To [ALT+F1].
3. In the Go To Program dialog box, type in "1830."
w The UL Certified Accounts program opens.
The Certified Accounts Window
The UL Certified Accounts window is blank until you perform a search. This window contains three panes:
-
The upper pane - in which you select search parameters
-
The middle pane - in which SBN displays information on selected accounts
-
The lower pane - in which SBN displays search results

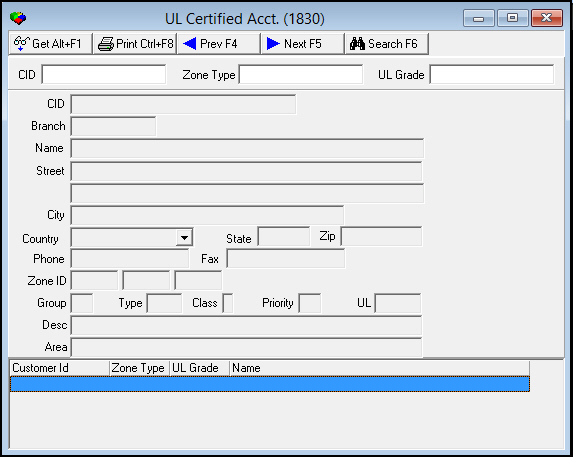

The following graphic shows Certified Accounts as the program opens.
Field/Column Descriptions
The following table describes the fields and columns used in Certified Accounts.
|
Field/Column |
Description |
|
Search Parameter Fields - Upper Pane |
|
|
CID |
Type a specific CID or a wildcard search string to locate accounts associated with that CID. |
|
Zone Type |
Type a Zone Type or a wildcard search string to locate accounts associated with that type. |
|
UL Grade |
Type a UL Grade or a wildcard search string to locate accounts associated with that UL Grade. |
|
Detail Fields - Middle Pane |
|
|
CID |
ID of the selected customer account. |
|
Branch |
Installation branch associated with the selected account. |
|
Name |
Name of the installation. |
|
Street |
Street (part of the account holder’s address). |
|
Street 2 (No label) |
Additional street address information, if applicable. |
|
City |
City (part of the account holder’s address). |
|
State |
State in which the account holder is located. (This field holds a maximum of 60 characters.) |
|
Zip |
Zip Code (part of the account holder’s address). |
|
Country |
Country in which the account holder is located. |
|
Phone |
Primary phone number of the account holder. |
|
Fax |
Fax number of the account holder. |
|
Zone ID |
Zone ID for this customer account. (This field populates from information in the Zones tab.) |
|
Zone Area (No label) |
Zone area for the specified zone. (This field populates from the information in the Zones tab.) |
|
Zone Code (No label) |
Zone code for the specified zone. (This field populates with information in the Zones tab.) |
|
Group |
Identifies the Monitoring group associated with the specified zone. |
|
Zone Type |
Identifies the type of zone. |
|
Class |
Identifies the Monitoring Class for this zone. |
|
Priority |
Identifies the priority assigned to this zone. |
|
UL |
Identifies the UL Grade. |
|
Desc |
Zone text description. (This field populates from information in the Zones tab.) |
|
Area |
Description of the protected area the zone covers. |
Searching for Certified Accounts
The results pane of Certified Accounts remains blank until you perform a search.
Use the following steps to search for certified accounts:
1. In Certified Accounts, complete the search parameter fields in the upper pane.
Note: These fields accept wildcards. For more information on using wildcards, see Using Wildcard Characters.
2. Choose Search.

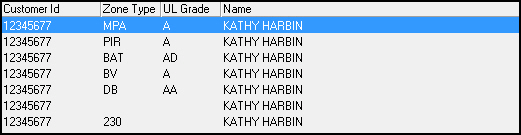

w SBN displays the records that match your search parameters.
Using Common Functions
See the reference document Common Functions in SBN for more information.
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
|
Button |
Name |
Shortcut Key |
Action |
Description |
|
|
Get Record |
ALT+F1 |
1830/ 1 |
Get record. |
|
|
Print Selected Records |
CTRL+F8 |
1830/ 6 |
Print selected records. |
|
|
Previous Record |
F4 |
1830/ 999 |
Go to previous record. |
|
|
Next Record |
F5 |
1830/ 999 |
Go to next record. |
Modifications and Updates to Certified Functions
The following table lists modifications and updates to the Certified Functions documents.
|
Mod Number |
Date |
Description |
|
n/a |
8/14/14 |
Images updated. |
