AFANP Zone Types

Program #:   1853

Module:    System Administration

Overview

Use AFANP Zone Types (program #1853) to define AFANP zone types for AFANP alarm type conversions. Use this program in conjunction with Zone Types (program #1733), to define and maintain alarm types used by SBN. SBN searches for zone types from Zone Types (program #1733). If SBN cannot find a zone type, it searches for the same agency blank zone in AFANP Zone Types (program #1853).

SBN looks up signals received from a zone with RTRA !=��, using type and current status. All BINARY# found will be logical OR together. The resulting number will be sent.

To access this program, select AFANP Zone Types (program #1853) from the main menu of SBN.

The AFANP Zone Types Window

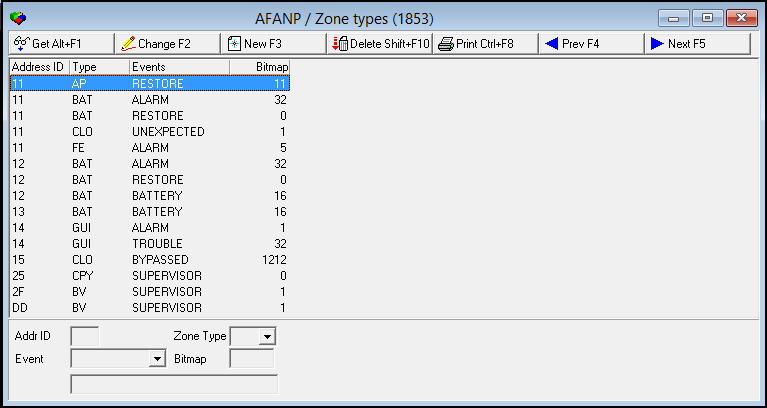

The following graphic shows the AFANP Zone Types window. The window displays previously defined AFANP zone types.

Field/Column Descriptions

The following table describes the fields and columns used in the AFANP Zone Types window.

Using Common Functions

See the reference document Common Functions in SBN for more information.

Button Functions

The following table displays the buttons, describes the shortcut keys, actions, and functionality.

Modifications and Updates to AFANP Zone Types

The following table lists modifications and updates to the AFANP Zone Types document.
