Ins With <= XXX Events
Ins With <= XXX Events
Ins With <=XXX Events
Module: Account Management
Overview
Use the Ins with < = XXX Events report to list all accounts that have had, at most, the number of events of the specified count. User’s branch restrictions apply.
You can limit the results of this report by
Date
Time
Branch
Monitoring status
The report output does not include log-only events, but does include simulated events with actual events. Users can now use a wildcard character in the "Events" field for searches. If event 1 is %, the event 2 parameter is ignored. If event1 has a value assigned to it and event 2 = %, event 2 will be set to event 1 in the reports query.
To access this report, select Ins with < = XXX Events (report #1978) from the main menu of SBN.

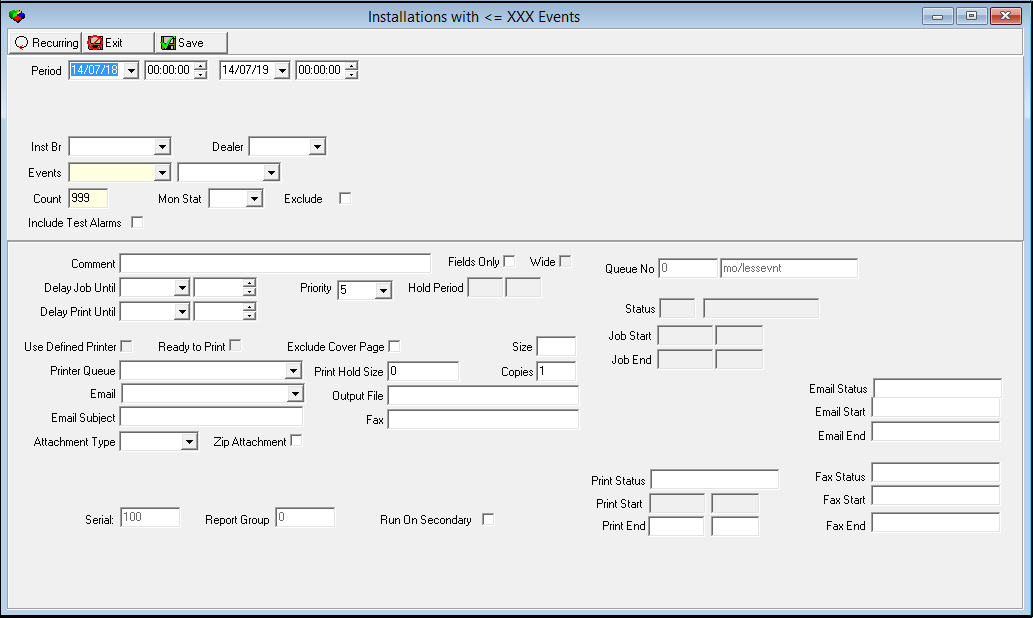

The Ins <=XXX Events Report
This window contains two panes: use the upper pane to define the content of the report; use the lower pane to define the job output - how, when, and where you want to print the report.
Note: See Report Parameters Pane for information on the fields in the lower pane, which are the same in every report.
Field Descriptions
The following table describes the fields used in the upper pane of this report.
Note: You can use wildcard characters in selected fields. For more information about using wildcards, see Searches.
Field |
Wildcards |
Description |
Period |
||
Date
- From |
No |
You must select a date or a range of dates to limit the report to events that occurred during that range. Select the beginning date of the range. O This field defaults to the current date. |
Time
- From |
No |
You may select a range of time to limit the report to events that occurred during that range. Select the beginning time of the range. O This field defaults to 00:00 (Midnight). |
Date
- To |
No |
You may select a range of dates to limit the report to events that occurred during that range. Select the ending date of the range. O This field defaults to tomorrow’s date. |
Time
- To |
No |
You may select a range of time to limit the report to events that occurred during that range. Select the ending time of the range. O This field defaults to 00:00 (Midnight). |
Inst Branch |
Yes |
You may select an installation branch number to limit the report to installations associated with that branch. (This menu originates from program #1530). O You only have access to those branches contained in your branch access user profile. |
Dealer |
No |
You may select a dealer ID to restrict the report to installations associated with that dealer. (This menu originates from program #1537.) O If your company uses Dealer restrictions, the menu displays only those dealer IDs included in your user profile. O If you leave this field blank, the report includes installations for all dealers. |
Event Range |
||
Event - From (No label) |
No |
You must select a range of event types to limit the report to events within the range. Select the beginning event type of the range. Wildcard searches now supported. |
Event
- To |
No |
You must select a range of event types to limit the report to events within the range. Select the ending event type of the range. Wildcard searches now supported. |
Count |
No |
Type the number of occurrences of the selected events to limit the report. O If blank, SBN defaults to 999 events. If you type 0 (zero), the report runs for all accounts that have had NO signals for the period requested. |
Monitoring Status |
Yes |
You may select a monitoring status to limit the report to installations with that monitoring status or use the % wildcard to include all monitoring statuses. |
Exclude |
No |
You may exclude a specific monitoring status from the report by selecting the monitoring status and then entering a check mark in this box. |
Include Test Alarms |
No |
Enter a check mark in this box to include log-only signals. |
Running and Viewing a Report
For information on running and viewing a report, see Common Functions in SBN.

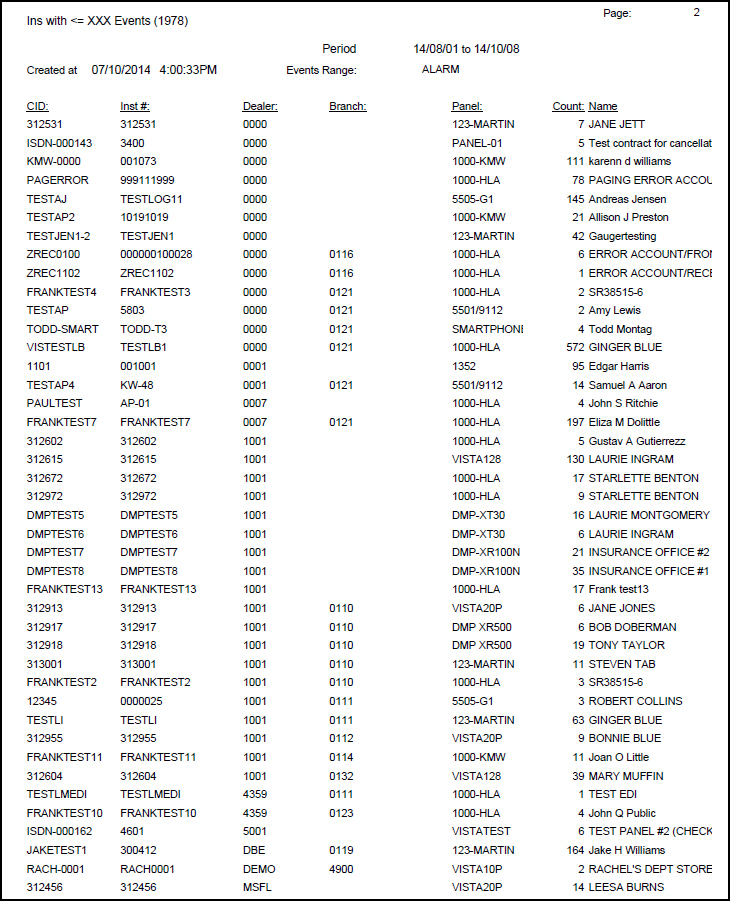

Report Example
The following graphic shows the report output.
Column Descriptions
The following table describes the columns used in the report display.
Column |
Description |
Dealer |
If you selected a Dealer, report displays the ID of the dealer associated with the displayed installations. |
CID |
Customer ID number. |
Inst # |
Installation number. |
Dealer |
Dealer ID attached to the Installation ID number. |
Branch |
Installation branch for the CID listed. |
pane |
pane type contained on this installation. |
Count |
Number of specified events for this installation. |
Name |
Combined customer name from the installation. |
Total |
Total number of installations returned in the report. |
Button Functions
The following table displays the buttons, describes the shortcut keys, actions, and functionality.
Button |
Name |
Shortcut Key |
Action |
Description |
|
Recurring |
Alt+F1 |
1978 |
Open fields for recurring/template reports. |
|
Exit |
Esc |
1978 |
Exit without saving. |
|
Save |
Enter |
1978 |
Save existing record. |
Modifications and Updates to Ins With <=XXX Events
The following table lists modifications and updates to the Ins With <=XXX Events document.
Mod Number |
Date |
Description |
n/a |
7/18/14 |
Images updated. |
