live-traffic

Live traffic displays signals as they are received by SBN. The data is refreshed every 90 seconds. It is possible to navigate to the alarm log of an installation where a signal has been received by clicking on the relevant row.

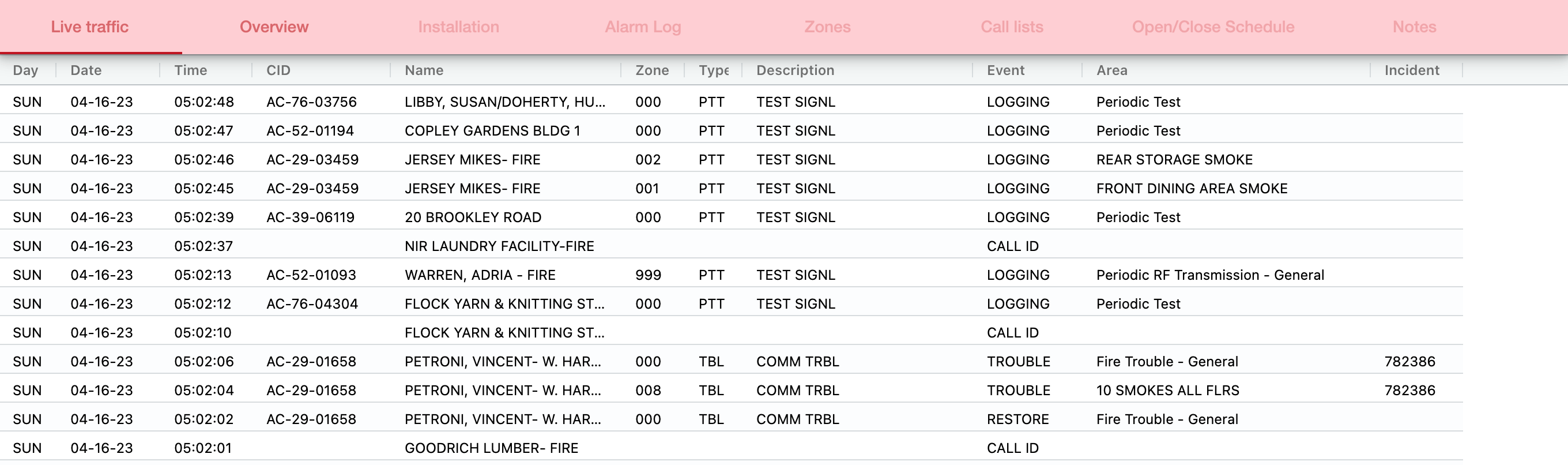

=== "Desktop"

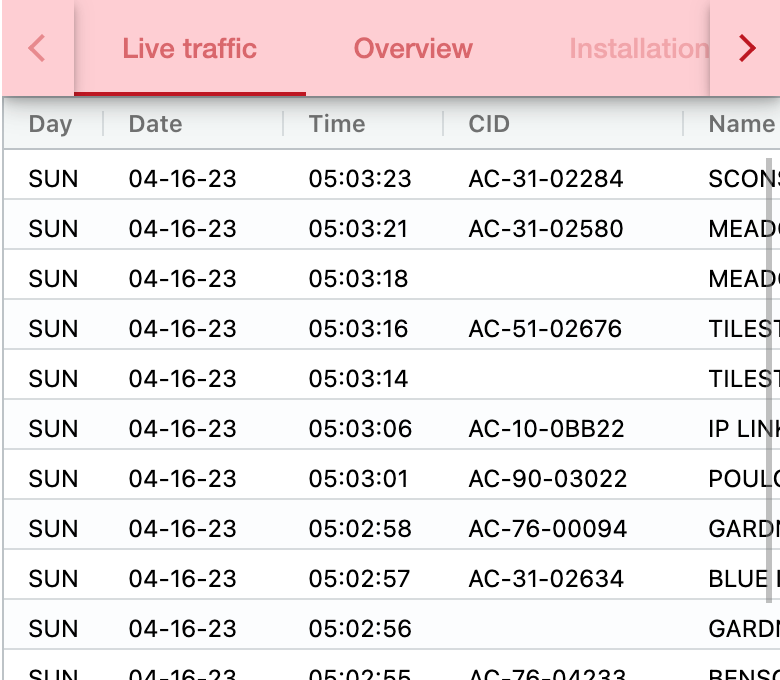

=== "Mobile"

| Field | Description | | ------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Dealer | Dealer ID associated with the installations whose alarm events are displayed in the Dealer Traffic Screen. If blank, the screen displays events from all dealers the user has access to. | | Incident | Number SBN generated incident number for the alarm. | | Day | Day of the week this event occurred. | | Date | Date this event entered the Alarm Log; based on the customer’s time zone. | | Time | Specific time this event entered the Alarm Log; based on the customer’s time zone. | | Terminal | Terminal number of the operator who performed the action. | | Operator | Name of the operator who performed the action. | | Event | Type of event for this incident. For example, alarm, false, or missing. | | Event Ext | Extension Code for the action taken for this incident. | | Zone | Zone from which the incident was reported, if the incident came from a specific zone. | | Type | Type of alarm that was received. | | Comment | Additional comments about the incident. | | Description | Text description for the incident. | | Area | Text from the Protected Area field in Zones. | | Installation Number | User-assigned number that identifies the installation. This number is unique and works together with the dealer ID. | | CID | Panel (Customer) ID number from which the signal was received. | | Name | Customer name at the installation from which the signal was received. | | Monitoring Branch | Monitoring location for the installation from which the signal was received. |
